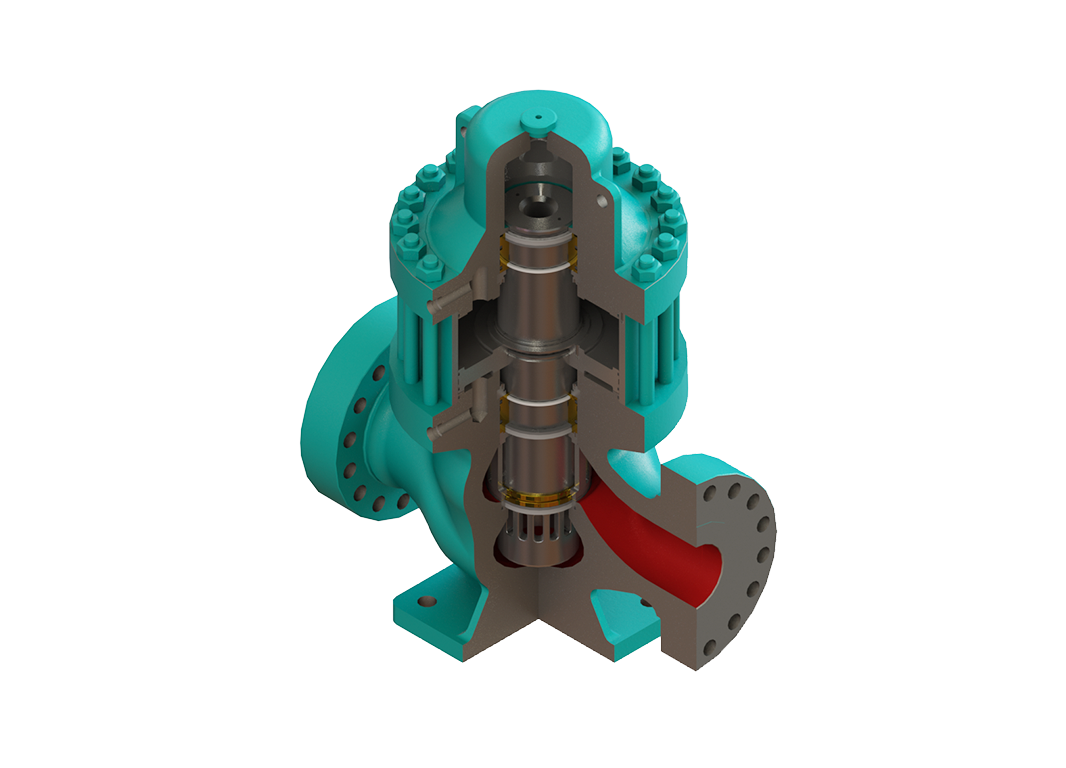

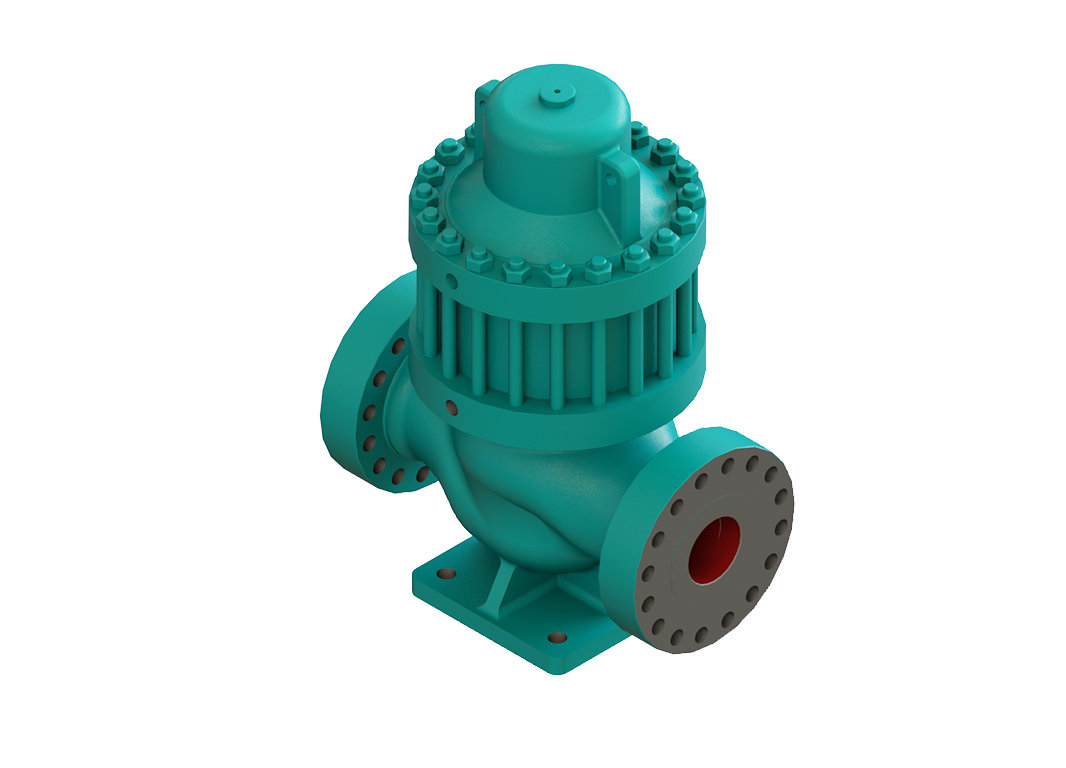

Name : Descaling Spray Valve
Model: DSV-S30
Valve Size : 200mm(8")
Rating : 2000LB
End Connection : Flanged (MFG Standard)
‍
Face to Face : 1022mm
Height (Center to Top) : 1150mm
Height (Bottom to Center) : 370mm
Valve Mounting Bolt Size / Spacing : 4-M42 / 360mm X 360mm

Air Supply : Rc 1-1/4"
Limit S/w : Conforms to NECA C 4508 / IP67
Quick Exhaust Valve : Rc 1"
Operating Time : Open(3 sec) / Close(5 Sec)
(KR Patent No : 10-2639276)

Fluid : Industrial Water
Temperature : (Max) 32 ℃
Working Pressure : 23.83 Mpa
Shell Test Pressure (Body) : 35.75 Mpa
Shell Test Pressure (Seat) : 26.21 Mpa
